Tungsten Alloy Ball
1、Tungsten ball specifications (size and weight)
Diameter |
Unit Weigh |
Diameter |
Unit Weigh |
φ1.80mm(0.071") |
0.055g |
φ5.0mm(0.197") |
1.178g |
φ1.90mm(0.075") |
0.065g |
φ5.5mm(0.217") |
1.567g |
φ2.00mm(0.079") |
0.075g |
φ6.0mm(0.236") |
2.035g |
φ2.16mm(0.085") |
0.095g |
φ6.5mm(0.256") |
2.587g |
φ2.25mm(0.089") |
0.107g |
φ7.0mm(0.276") |
3.231g |
φ2.50mm(0.098") |
0.147g |
φ7.5mm(0.295") |
3.974g |
φ3.0mm(0.118") |
0.254g |
φ8.0mm(0.315") |
4.823g |
φ3.5mm(0.138") |
0.404g |
φ8.5mm(0.335") |
5.785g |
φ3.81mm(0.15") |
0.521g |
φ9.0mm(0.654") |
6.867g |
φ4.0mm(0.157") |
0.603g |
φ10mm(0.394") |
9.420g |
φ4.5mm(0.177") |
0.858g |
Other engravings are customized upon request |
(Notice: The above unit weight is the theoretical unit weight, and the actual product unit weight may be slightly different. )
2、Applications
(1)Tungsten super shot TSS for hunting
Tungsten alloy shot is used as the shot for shotgun hunting shells. The pellets spread upon leaving the barrel, and the power of the burning charge is divided among the pellets, which means that the energy of any one ball of shot is fairly low. In a hunting context, the product makes shotguns useful primarily for hunting birds and other small games.

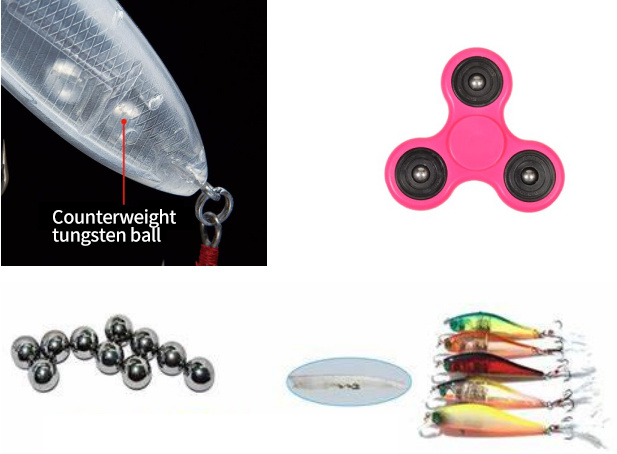

(2)Tungsten ball counter weight for lure fishing sinker & toys
Tungsten alloy ball is small in volume but very dense, which means it can be used in various fields requiring small but heavy parts, such as the counterweights for golf club, fishing weights, counterweights for military applications, and so on.
Advantages:
- Tungsten alloy ball weight balance
- Smoothy surface-moving easily in lure
- High density-heavy weight leading the lure sinking deeper

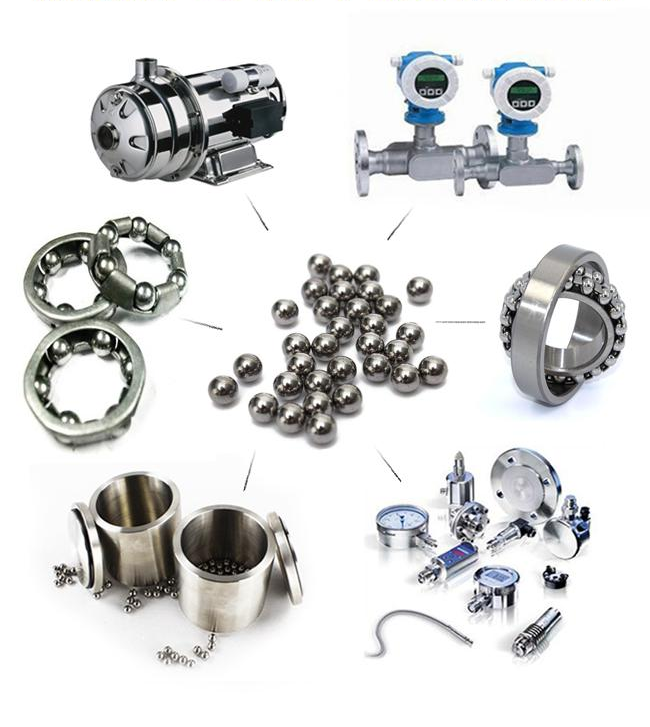

(3)Tungsten ball for bearing
Furthermore, we provide this tungsten alloy ball in different sizes and other technical specifications as per customer's specific requirements at market leading prices.
Features:
- Rugged design and accurate dimension
- Elevated durability and resistant against corrosion
- Impressive thermal conductivity and corrosion resistance
- Low thermal expansion and highly density
